The latest technology for wireless data transmission. Using light technology, the data is distributed via a transmitter on the ceiling within a radius of several metres, making it possible to access the Internet with a notebook, tablet or smartphone without radio radiation and without cables. Up to ten devices can be operated via one transmitter.

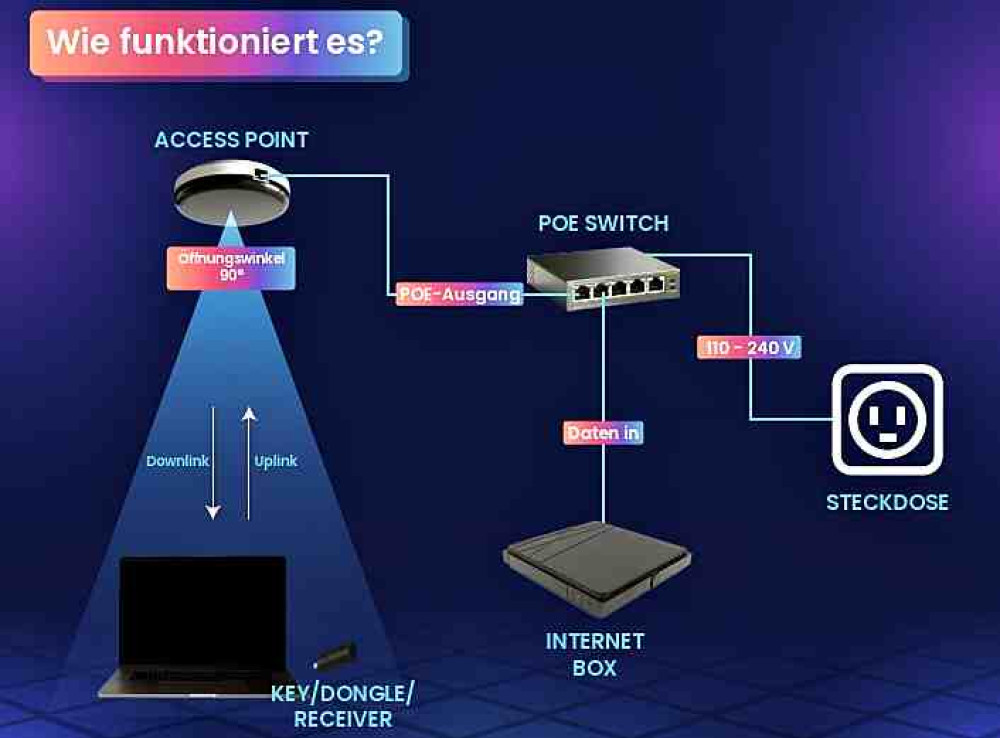

A LAN cable is pulled from the router to the transmitter, which then transmits the data into the room via light (invisible light).
Professional measurements have not detected any radio emissions. Ideal for homes, families, offices, schools, etc. etc.
Simple installation. Each device recognises the data without a driver.
The starter kit contains all the necessary devices and cables:
Access point (transmitter)
Dongle (receiver for tablets, notebooks, smartphones)
Switch (to be connected between router and transmitter)
Earthing cable for earthing the switch
A "Lifimax" tablet with built-in dongle (receiver) is also available (item number 770274)
Technical data:
Li-Fi standard ITU-T G.vlc
Dongle connection USB-C, USB-A adapter
Speed rate 100 Mbps download, 100 Mbps upload
Latency time 0.5 ms
Number of end devices 16 per access point
Indoor application
Coverage through AP opening angle 90°
Certificates CE, ROHS
Protection class IP30
Photobiological standard IEC/EN 62471
Power supply AP POE (IEEE 802.3af)
Power supply POE switch 230V AC
Power consumption AP 5 Watt nominal
Dongle power consumption 2.5 watts nominal
Dimensions
AP Dimensions Diameter 110 mm, height 30 mm
AP Weight 400 g
Dongle 74 x 28 x 15 mm
Dongle weight 70 g
